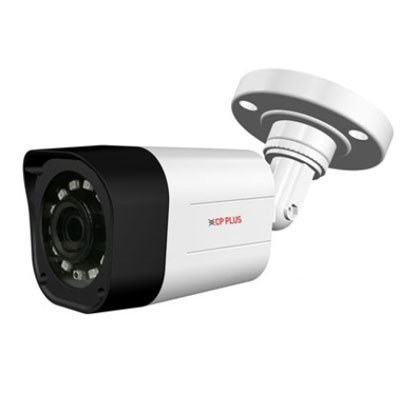

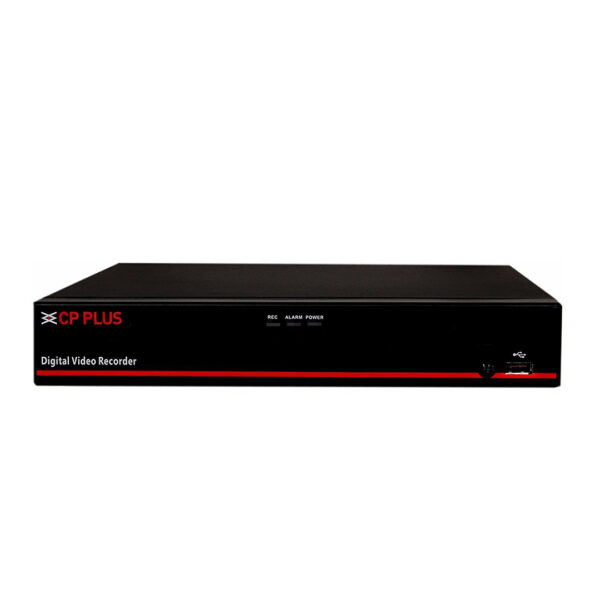

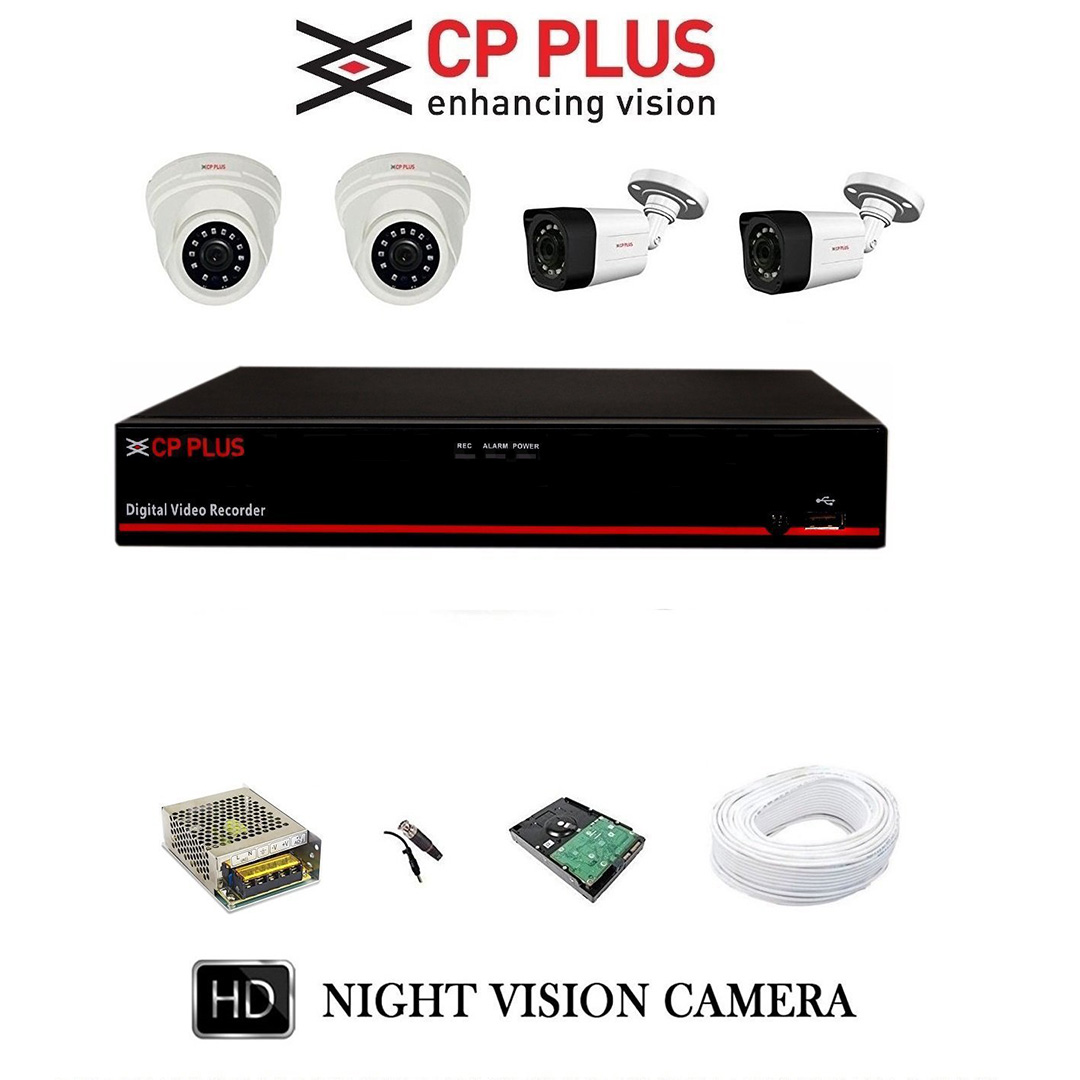

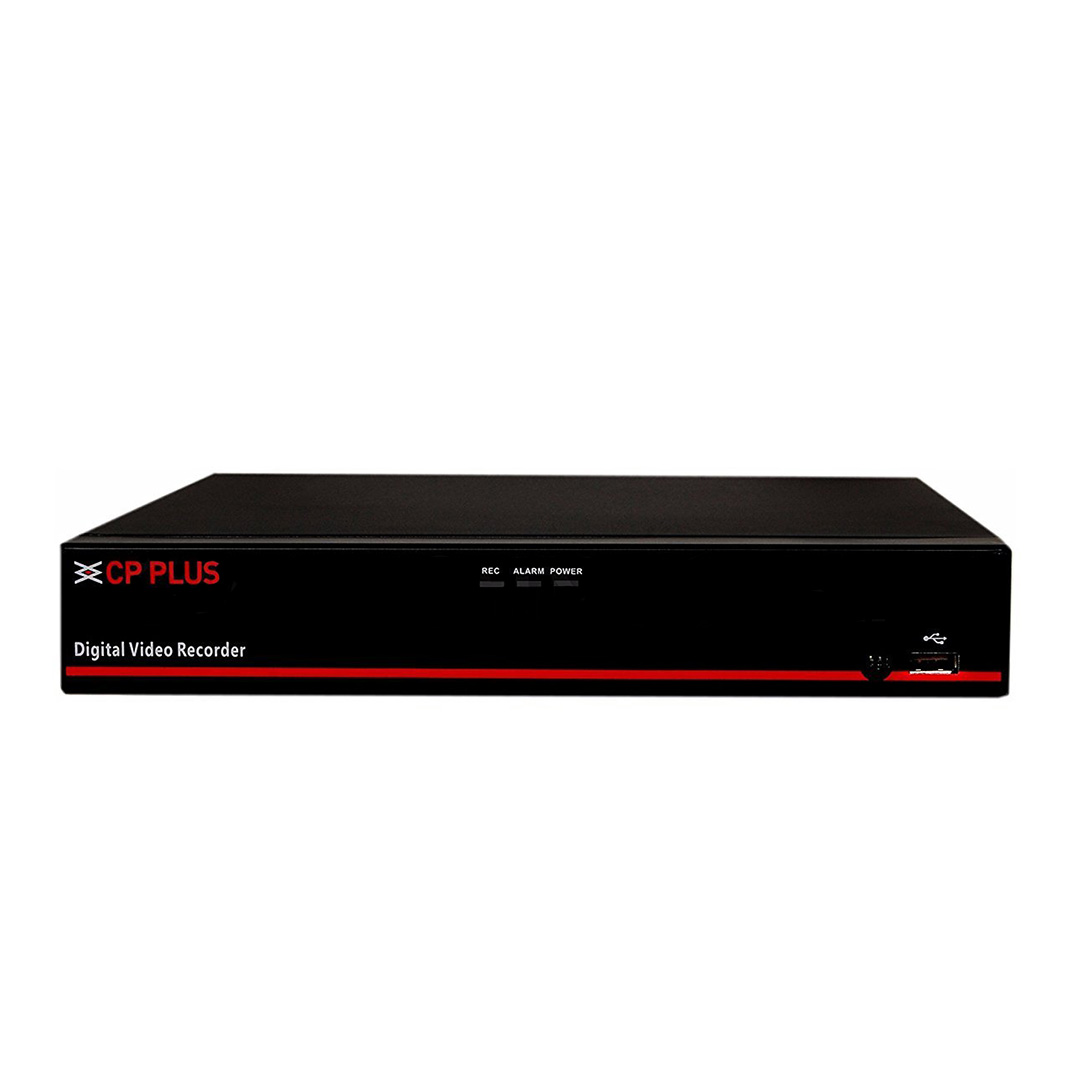

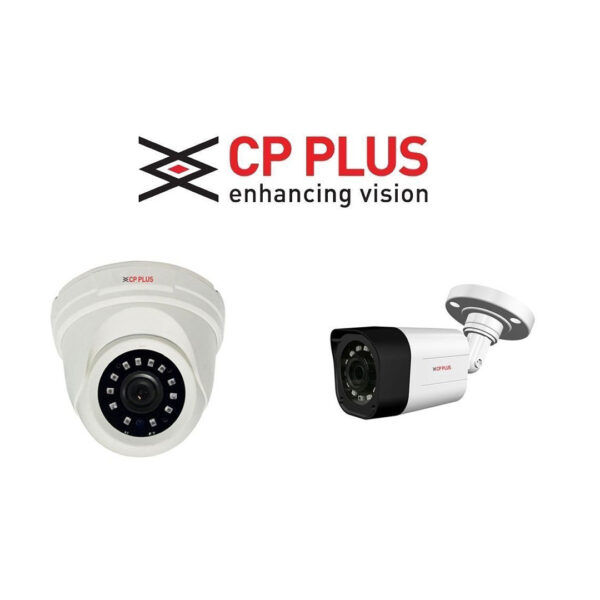

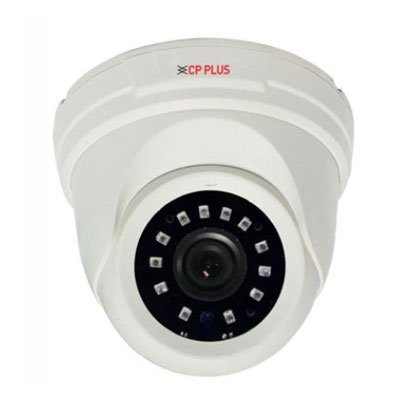

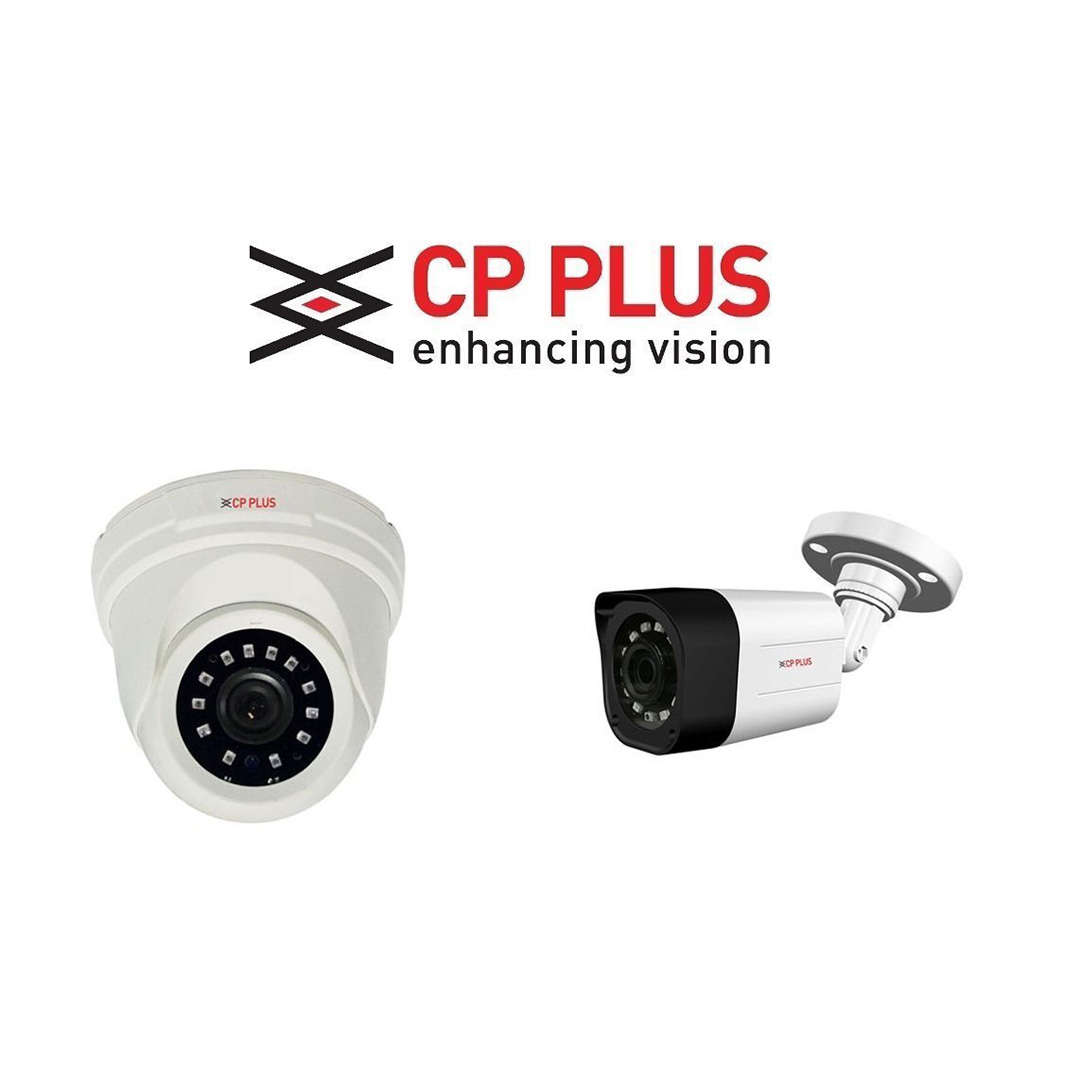

Digital video recoder (Quantity 01 Nos) : model no. : cp-er-0404e1-ts equipped with uni+ technology for compatibility with ip, cvbs, and all popular hd analog formats (Adapts Automatically to all Popular HD Formats) video input 4 channel with audio input 4 channel support up to 6tb hard drive, sata port support long distance video transmission over coaxial cable plug & play remote viewing powered by CP Plus instacloud, remote viewing via mobile app / web browser / cms hdmi / vga simultaneous video output, 2 usb ports, 1 audio output, 1 rj45 high performance embedded microprocessor, embedded linux os power supply 12v/2a power consumption 10w (Without HDD) playback support on 4 channel dome camera/bullet camera 2.4 megapixal (Quantity 02+02=04 Nos) : model no. : cp-gtc-d24l2-v3/cp-gtc-t24l2c-v3 plug & play hd/sd camera, resolution upto 1080p/720p 25/30fps, 3.6 mm lens real-time preview without latency or delays equipped with fine 12 ir led’s for clearer nightvision, ir range of 20mtr (Universal Technology) compatible with hdx, ahd, hdcvi, cvbs, hdtvi dvrs 1/2.7″ 2.4mp hqis pro image sensor, minimum illumination color(0.1Lux) white and black (0.01Lux IR LED On), 1/50s(1/60s)-1/100,000s(Auto/Fixed) shutter speed power source dc12v (+/-10%), power consumption 0.4w (2.5W after IR LED Powered on) **for bullet camera : weatherproof standard is ip66 with plastic body power supply CP Plus (Quantity 01 Nos) : model no. : cp-dps-md50-12d metal case input voltage 180~264vac / output voltage: 12v dc 5 amp / rated power 60w /current range 0~5a hard disk drive (Quantity 01 Nos) : seagate hdd bnc pins (Qu.8 Nos) & power dc pins (Qu.4 Nos)
